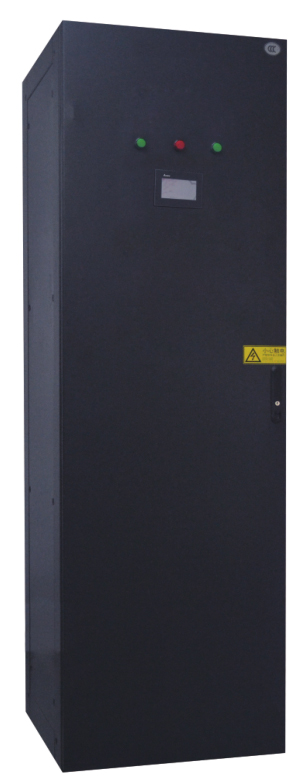

ATS Switch Cabinet

"ATS switch cabinet mainly realize automatic switching function between the two power supply ways, when one power supply way fails, it will automatically switch to the other. ATS switch cabinet is applied to the data room area as primary distribution, and is mainly to realize the mains-mains/mains-generator/generator-generator automatic switching function, and supply dual switching power for the back-end air-conditioning, lighting, fire protection, UPS/HVDC/LVDC."

Product Introduction
Product Features
Technical Parameters

Product Introduction

"ATS switch cabinet mainly realize automatic switching function between the two power supply ways, when one power supply way failure, it will automatically switch to the other. ATS switch cabinet is applied to the data room area as primary distribution, is mainly to realize the mains-mains/mains-generator/generator-generator automatic switching function, and supply Dual switching power for the back-end air-conditioning, lighting, fire protection, UPS/HVDC/LVDC. "

Product Features

Dual circuit power input, automatic detection and switch (support a variety of switching modes);

Wide capacity setting, 63-4000A, flexible configuration according to the back-end load capacity;

High reliability, adopt well-known brands switch devices, equipped with lightning protection device, electrical performance factory inspection;

Intelligent monitoring, equipped with a 4.3-inch touch screen/smart meter, it could detect the current, power and power consumption.etc.

Convenience maintenance , support front and back side maintenance;

Complete quality certification, including 3C certification, earthquake resistant test report, salt fog test report;

Product Parameters

item	parameter value
Input capacity	63-4000 - a ATS, optional
Cabinet size	600/800/10008002200 (WxDxH), according to the size of the ATS.
Types of communication	RS485
Lightning protection level	Class B, 60kA (8/20 mu s)
Maintenance mode	front and back sides maintenance
Protection grade	IP20
input/output line mode	in and out from upside/in and out from downside
installation mode	fixing on the floor
Cooling way	Natural cooling
certification	3C certification, antiseismic grade 8, 9.
output	Bus/plastic shell
Monitoring parameters	Monitor input voltage, current, power, power factor, frequency and quantity of electric charge, equipped with 4.3 inch touch screen or panel type smart meter.
Working temperature	Temperature 5 ℃ ~ + 40 ℃
Working humidity	5%RH～95%RH
The power supply system	380/400/415V 50/60Hz
Altitude	0 ~ 2000m, limited using above 2000m.
