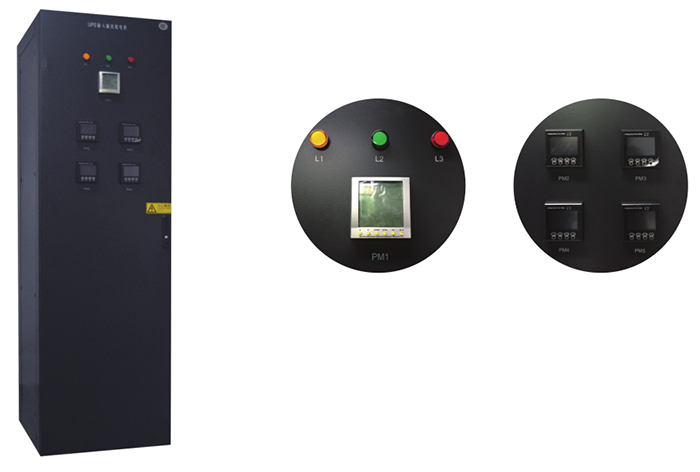

UPS input, output distribution cabinet

UPS input and output cabinet is a UPS power supply assorted product that tailor-made base on UPS features, mainly have UPS power input (including double electric input), the output for UPS load, Lightning protection, UPS manual bypass, input and output detection instruments, output instructions and detection instrument and other customized functions.it could Effectively and intuitively reflect the working state of UPS.

Product Introduction
Product Features
Technical Parameters

Product Introduction

Product Features

Complete quality certification, including 3C certification and earthquake resistant test report;

High reliability, adopt well-known brands switch devices, equipped with lightning protection device, electrical performance factory inspection;

Intelligent monitoring, equipped with a 4.3-inch touch screen/smart meter, it could detect the current, power and power consumption.etc.

Convenience maintenance , support front and back side maintenance;

Product Parameters

Item	Parameters
Item	UPS input cabinet	UPS output cabinet
Input capacity	Busbar/break line	Plastic case circuit breaker ( maintenance bypass, with lock)
Cabinet size	600/800/10008002200mm(WxDxH)
Types of communication	RS485
Lightning protection level	Class C, 40kA（8/20μs）
Maintenance mode	front and back sides maintenance
Protection grade	IP20
Input/ output line mode	in and out from upside/in and out from downside
installation mode	fixing on the floor
Cooling way	Natural cooling
certification	3C certification, antiseismic grade 8, 9.
output	Bus/plastic shell
Monitoring parameters	Monitor input voltage, current, power, power factor, frequency and quantity of electric charge, equipped with 4.3 inch touch screen or panel type smart meter.
Working temperature	-5%～+40℃
Working humidity	5%RH～95%RH
The power supply system	380/400/415V 50/60Hz
Altitude	0 ~ 2000m, limited using above 2000m.
